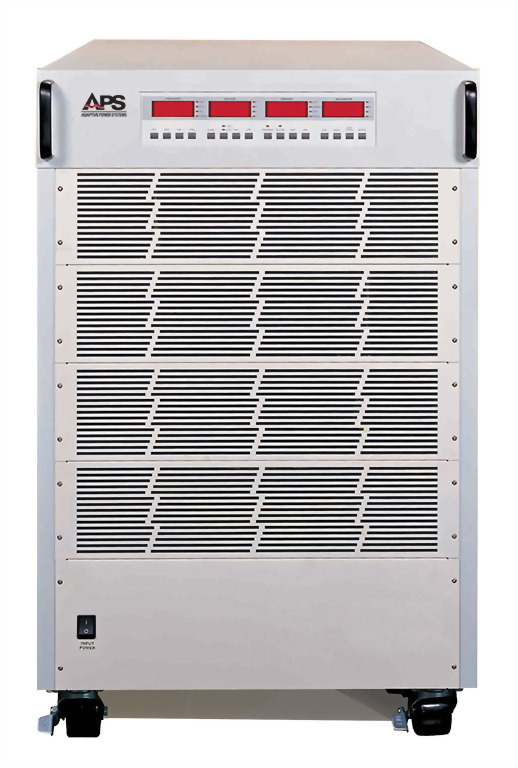

APS3000 Series THREE PHASE OUTPUT FREQUENCY CONVERTERS

Model : APS3000 Series

Q'ty :

The APS3000 Series frequency and voltage converters are economically priced and offer top of the line performance.

The series consists of seven three phase output instruments ranging in size from 3kVA to 120kVA. The converters allow the user to duplicate a utility grid of either 50 or 60 hertz for export product testing or operation of imported equipment or 400Hz power for avionics and shipboard applications.

For questions regarding the APS3000 Series, please contact us.

The APS3000 Series converters allow the user to duplicate a three phase utility grid of either 50 or 60 Hertz for export product testing or operation of imported equipment. With its ability to power multiple AC products simultaneously, the APS3000 models are ideally suited for burn-in and test of large industrial equipment. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hertz electronics that are onboard an aircraft or a military vessel. The adjustable frequency band of 45 to 500 Hertz in conjunction with the dual voltage ranges of 0-150 volts or 0-300 volts provides full capabilities for testing and operating electronics worldwide.

Setup and operation of the APS 3000 Series is exceptionally easy. The simple front panel layout allows users to continuously vary voltage and frequency or to select preset standard frequency settings. Individual meter displays provide digital readouts for frequency, voltage, current and power or power factor of each phase.

The APS 3000 series converters are a simple and cost effective solution for all of your higher power three phase AC power conversion needs!

Model	APS	3003	3006	3009	3015	3030	3060	3090	3120	3150	3180
INPUT SPECIFICATIONS
Input Phase		1-phase / 2-wire + Ground		3-phase / 3-wire + Ground
Input Voltage		230Vac ± 15%		208, 220, 240 (3W+G), 380, 415, 480V (4W+G) ± 10%				380, 415, 480V (4W+G) ± 10%
OUTPUT SPECIFICATIONS
Power Rating		3kVA	6kVA	9kVA	15kVA	30kVA	60kVA	90kVA	120kVA	150kVA	180kVA
Max Arms/ø @ 0-150V		8.4 A	16.8 A	25.2 A	42 A	84 A	168 A	252 A	336 A	417 A	250 A
Max Arms/ø @ 0-300V		4.2 A	8.4 A	12.6 A	21 A	42 A	84 A	126 A	168 A	208 A	125 A
Phase		3-phase / 4-wire + Ground
Voltage	Low Range	0-150 V L-N / 260 V L-L
	High Range	0-300 V L-N / 520 V L-L
	Resolution	0.1V
	Accuracy	± (1.0% of setting+0.2V)
	Regulation	± 0.1V with Auto Adjust ON
Frequency	Range	45 – 500Hz
	Resolution	0.1Hz at 45 – 99.9Hz, 1Hz at 100 – 500Hz
	Accuracy	± 0.2%
Harmonic Distortion		≤ 1.0% (Resistive Load)
Crest Factor		≥ 3 to 1
Load Regulation		± 0.5% (Resistive Load)
Protection		Over-Current, Short-Circuit, Over-Temperature
Efficiency		> 85% @ full load
Operating Temperature		32°F – 104°F (0°C – 40°C), 80% Relative Humidity
Altitude		Below 6500 feet
DISPLAY & CONTROLS
4 Digital LED meters		Frequency, Voltage, Current, Power or Power Factor (simultaneously)
PLC Remote I/F		M1, M2, M3 and Output On/Off
Memory (Standard)		8 Memories, 5 Programmable Parameters per Memory for: Voltage, Frequency, Test Time, Delay Time, Current, Power and PF Limits
Calibration		Front Panel Calibration
Remote Control	Optional	RS232 or GPIB (requires (P)-PRC Option)
MECHANICAL SPECIFICATIONS
Model	APS	3003	3006	3009	3015	3030	3060	3090	3120	3150	3180
Dimensions	Height	34″/864		33″/839		38″/949	65″/1662	71″/1805	71″/1805	71″/1805	71″/1805
(In/mm)	Depth	26″/660		39″/980		39″/980	39″/980	39″/980	47″/1180	47″/1180	47″/1180
	Width	17″/432		24″/600		24″/600	32″/800	48″/1200	48″/1200	63″/1600	63″/1600
Weight	(kg/lbs)	140/308	175/385	299/659	362/798	547/1206	909/2004	1505/3318	2139/4716	1800/3968	1800/3968

Programmable Voltage, Dual Range
Programmable Frequency
Three Phase or Split Phase Output
Current Limit Protection
Simple Front Panel Controls
Measurement readout for Frequency, Voltage, Current and Power for each phase
Low Voltage Distortion
High Crest Factor and Peak Current Capability
Up to 0-300 VAC Voltage Output or 600V Optional
45-500 Hz Full Power Bandwidth
RS232 or GPIB Interface Options

AC Test Power

The APS3000 Series Power Source is equipped with a powerful microcontroller to create a stable and accurate output frequency, regardless of AC input conditions. It can be programmed to supply a variety of power conditions to the device under test and meters all output parameters.

Frequency/Voltage Conversion

The APS3000 Series is an excellent source of stable three phase AC voltage over a frequency range of 45 to 500 Hz. The output frequency is quartz-crystal stabilized. Output voltages up to 300 VAC or 600V are provided.

Export/Import Product Development and Test

With the ability to provide any three-phase or split phase voltage and frequency combination found around the world, the APS3000 Series is a great choice for evaluating AC products for worldwide use. In particular, heavy duty electrical equipment and transformers intended for export to regions of the world with various utility grid voltage and frequency combinations can be tested in high volume using the higher power APS3000 models.

Avionics Power

Whenever 400Hz, 200Vac three phase Line-to-Line is required to power up shipboard or airborne equipment, the APS3000 can do the job. With up to 336A of current per phase available, even large equipment can be powered up.
