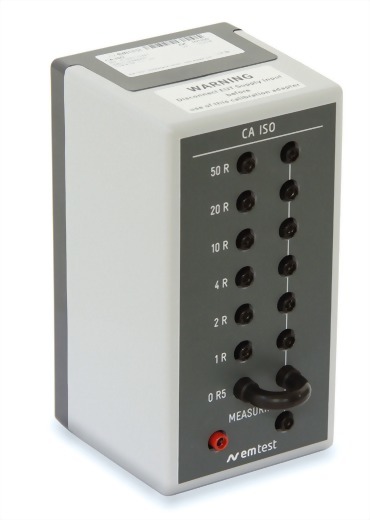

• One single load resistor box

• Includes all required load resistor values

• Highly accurate resistors (+/-1%)

• High temperature stability

• Resistors with very low inductance

• Resistor values 0.5ohm, 1ohm, 2ohm, 4ohm, 10ohm, 20ohm and 50ohm

Benefits

Selection of load resistors

The set of load resistors has been well selected in order to meet the wide range of source resistors specified in various national/international standards and vehicle manufacturer specifications.

The following load resistors are most used:

0.5 Ohm for Load Dump pulse verification as per a number of manufacturer specifications.
1.0 Ohm for Load Dump pulse verification as per a number of manufacturer specifications.
2.0 Ohm for verification of pulse 2a and pulse 5 as per ISO 7637-2 and various manufacturer specifications.
4.0 Ohm for verification of pulses 1, 2 and Load Dump pulse 5 as per various manufacturer specifications.
10.0 Ohm for verification of pulses 1 and 2 as per ISO 7637-2 and various manufacturer specifications.
20.0 Ohm for verification of pulse 1 as per ISO 7637-2 and various manufacturer specifications.

All load resistors are non-inductive and have a tolerance better than 1% as per standard requirements. They show sufficient power dissipation for the transient pulse energy.



Use of CA ISO

 The CA ISO verification box is directly plugged into the CDN outputs of the transient generator. The required load resistor is selected by the bridge connector. The waveform across the load resistor is best measured by a 100:1 voltage probe with sufficient bandwidth and voltage capability. EM TEST recommend a bandwidth of 20MHz minimum and a voltage measuring capability of 1,000V.
