The premier choice for testing manufacturing electronic components and devices. This system features a built-in RLC measurement bridge allowing electrical characteristics of each passive circuit to be analyzed efficiently.
Test & Measurement Performance
High Voltage Isolation Test up to 500 VDC (12-Bit Resolution)
Constant Current of 1 mA, 10 mA and 400 mA
Two Terminal Measurement down to 1 Ohm (± 1% ± 0.5 Ohms)
Four Terminal Measurement down to 3 mOhms (± 1% ± 0.3 mOhms)
Insulation Test up to 500 MOhms (± 1%), up to 5 GOhms (± 3%)
Resistor Test from 3 mOhms to 500 MOhms (± 1% ± 0.3 mOhms)
Diode and Zener Diode Test for Open, Short and Reversed Insertion
Transistor Test
Functional Test
Function Test of Keys and Switches
External Programmable Voltages up to 250 VAC / 125 VDC
Power Modules up to 3 A (25 VAC / 60 VDC)
External Voltage Measurement up to ± 500 V (DC to 1kHz)
RLC Meter
Fast, Accurate and Safe Component Network Measurement
Automatic Determination of Serial or Parallel RL / RC Networks
0 - 5 Vpp, DC to 100 kHz
Twisted Pair / Shielded Cable Test from 10 pF to 1 µF (±1% ± 2 pF)
Capacitor Test from 1 µF to 10,000 µF (± 2%)
Inductance Test from 1 µH to 1 H (± 2%)
Additional Measurement Capabilities Include:
|Z| - Impedance
|Y| - Admittance
θ - Phase Angle
R - Resistance (Serial or Parallel)
C - Capacitance (Serial or Parallel)
L - Inductance (Serial or Parallel)
D - Dissipation Factor
Q - Quality Factor
Hardware
Parallel Interface for Instant Connection to a PC (Includes Interface Cable)
Unlimited Number of Test Points
Extensive Selection of Output Connectors are Available Upon Request
Optional Remote Control Interface for Driving Peripheral Devices (Fixtures,
Feeders, etc.)
Dimensions & Weight
19-Inch Rack-Mount System on Wheels
Customized Height and Available Multi-Bay Configurations
Easy Test Point Expansion & Distribution
Very High Voltage (5,000 VDC / 3,600 VAC)
RLC Component Measurement
High Measurement Accuracy
Extremely Fast Test Speeds
Functional Testing of Control Assemblies
Automated Fiber Optics Testing
Reduction of Adaptation Cable Length
MIL 810 & MIL 1553 Certification
User-Friendly Software
>
Products » Weetech » Discontinued Products »

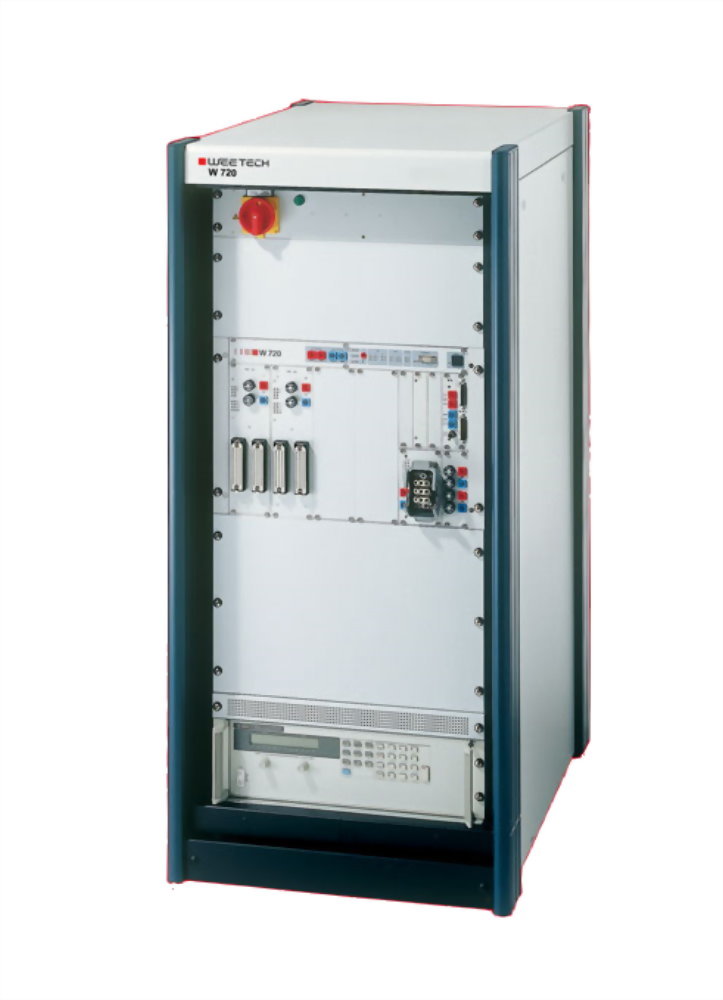

Discontinued Products Solutions W 720
