The premier choice for testing cables with high voltage safety requirements such as aircraft, medical equipment, ABS, airbags, etc. This system is compact and offers many hardware/software options making it the ideal solution for final or in-process test.
Test & Measurement Performance
High Voltage Isolation Test up to 1,000 VDC (12-Bit Resolution)
Constant Current of 1 mA, 10 mA, or 400 mA
Two Terminal Measurement down to 1 Ohm (± 1% ± 0.5 Ohms)
Four Terminal Measurement down to 10 mOhms (± 1% ± 3 mOhms)
Insulation Test up to 500 MOhms (± 3%), up to 5 GOhms (± 5%)
Resistor Test from 10 mOhms to 10 MOhms (± 1% ± 3 mOhms)
Capacitor Test from 10 nF to 10,000 µF (± 10% ± 1 nF)
Twisted Pair / Shielded Cable Test from 10 pF to 10 nF (Checks for Pair Inversion)
Diode and Zener Diode Test for Open, Short and Reversed Insertion
Function Test of Keys and Switches
Hardware
Expandable to 2,048 Test Points in Main Chassis and 8,192 with Expansions
Extensive Selection of Output Connectors are Available Upon Request
Optional Remote Control Interface for Driving Peripheral Devices (Fixtures,
Feeders, etc.)
Dimensions & Weight
W 424-1
Bench Top Enclosure
9.3 x 16.5 x 7.0 inches (W x D x H)
Up to 17.6 lbs
Holds up to 5 Test Cards for a Maximum of 320 Test Points
W 424-2
19-inch Rack-Mountable or Bench Top Enclosure
17.6 x 20.5 x 7.0 inches (W x D x H)
Up to 33.1 lbs
Holds up to 16 Test Cards for a Maximum of 1,024 Test Points

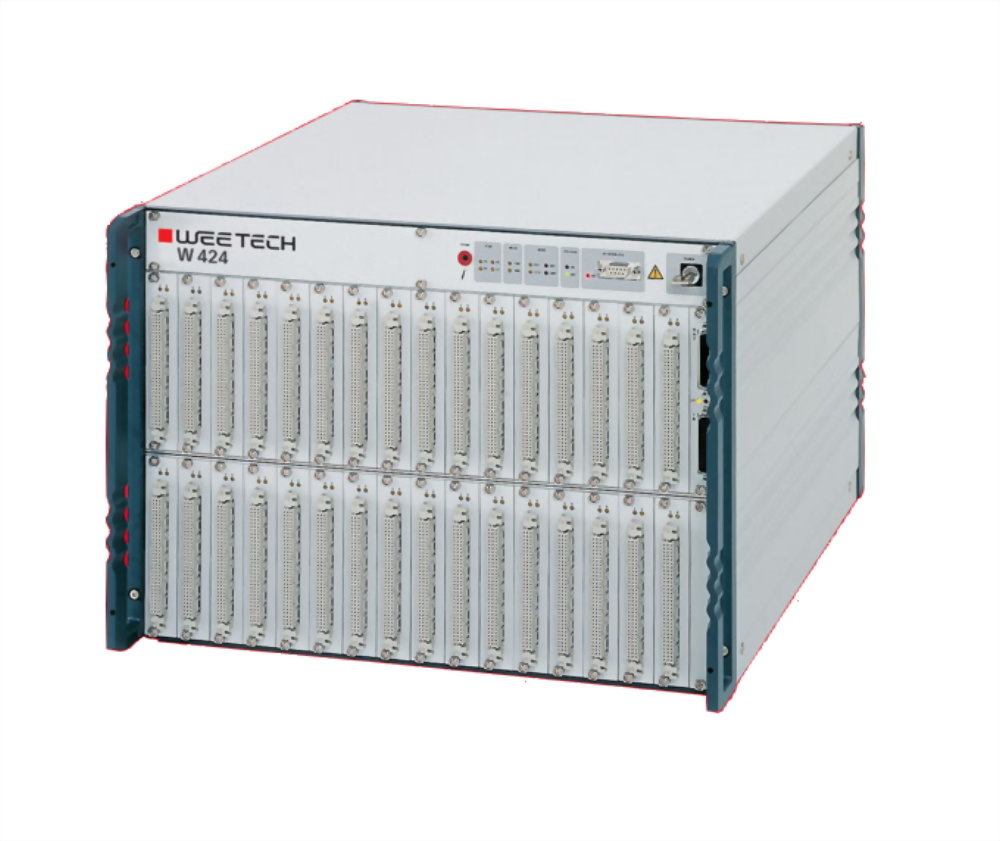

W 424-3
19-inch Rack-Mountable or Bench Top Enclosure
17.6 x 20.5 x 12.2 inches (W x D x H)
Up to 66.1 lbs
Holds up to 32 Test Cards for a Maximum of 2,048 Test Points
Expandable to 8,192 Test Points using Expansion Cabinets
Easy Test Point Expansion & Distribution
Very High Voltage (5,000 VDC / 3,600 VAC)
RLC Component Measurement
High Measurement Accuracy
Extremely Fast Test Speeds
Functional Testing of Control Assemblies
Automated Fiber Optics Testing
Reduction of Adaptation Cable Length
MIL 810 & MIL 1553 Certification
User-Friendly Software
>
