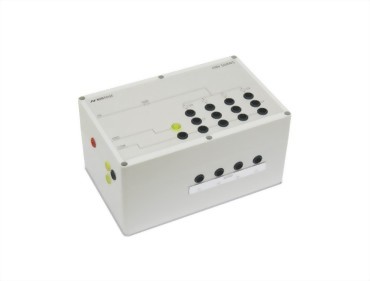

The CNV 504N5-series coupling/decoupling networks are used to apply slow damped oscillatory waves onto signal/data lines in accordance to EN/IEC 61000-4-18. A capacitance of 0.5uF is specified to couple the pulses on to the lines. Each line has a decoupling inductor of 1.5mH or 3.0 mH to protect the auxiliary equipment from being subjected to the test pulse. The disturbance signal used for this test is a damped oscillatory pulse with a frequency of 100kHz or 1MHz, being generated by the EM TEST OCS 500N6 or OCS 500N6F.

The CNV 504N5 series supports voltages of up to 250V AC/DC and a current of up to 4A AC/DC.

• Dedicated CDN for the coupling of slow damped oscillatory waves as per EN/IEC 61000-4-18

• Coupling capacitor 0.5uF

• Decoupling inductor 1.5 mH for 50 V AC/DC

• Decoupling inductor 3.0 mH for 250V AC/DC

• Nominal line current 4A AC/DC
