Smartest Solution for Automotive Transient Testing

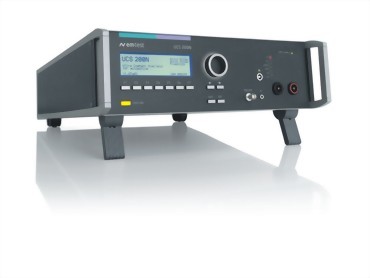

Never before an Ultra-Compact Simulator for automotive transient testing like the UCS 200N series was available. All international standards and most car manufacturer requirements have been put into one box. All pulses are fully compliant to the specifications. Even more, the waveform parameters for micropulses can be varied in order to test with pulses beyond any standard specification.

The UCS 200N series is the heart of the redesigned EM TEST Automotive test set-up having the ability to control any external EM TEST Load Dump and Battery Supply simulator. The built-in coupling network for nominal DC currents of up to 200A forms the single-port DUT connection for fully automated tests.

The software iso.control with its extensive standards library put this test equipment to the top with almost unlimited test capabilities.

Operation

Easy to operate

Front panel menu and function keys enable the user to program his test routines quickly and accurately.

The cursor allows fast control of all test parameters of the programmed routine, thus test procedures are simplified and confidence is generated that every step is carried out correctly.

Software

iso.control Software for control and documentation

Outstanding user convenience, clearly structured windows and operation features and the EM TEST standards library along with the flexibility to generate user specific test sequences very easily are the main features of iso.control software.

The software is automatically configured according to the connected EM TEST generators. iso.control software covers international/national standards and most of the manufacturer standards and is continuously updated. Extensive reporting capabilities help the user to create test reports that meet international requirements.

iso.control is supported by Windows 2000, Windows XP, Windows Vista, Windows 7 and Windows 8. Remote control is achieved either via USB or GPIB. iso.control supports a wide range of GPIB cards of National Instruments.

Accessories

ACC - Capacitive coupling clamp

All lines other than supply lines are subjected to electrical fast transient pulses by means of the ACC complying to ISO 7637-3:2007

CA EFT kit - Verification kit for EFT/burst pulses

As per ISO 7637-2:2011 the characteristic of the burst generator needs to be verified with two different loads 50 ohm and 1,000 ohm. EM TEST offers a calibration kit consisting of the two loads and an adapter to verify the pulses.

CA ISO - Load resistors for pulse verification
A set of highly-accurate load resistors is unified in a single box for the verification of micropulses and Load Dump pulses as specified in ISO 7637-2:2011, Annex C and a wide range of manufacturer specifications.
