TSS 500N10 - 10/700us pulse generation and coupling networks in one box

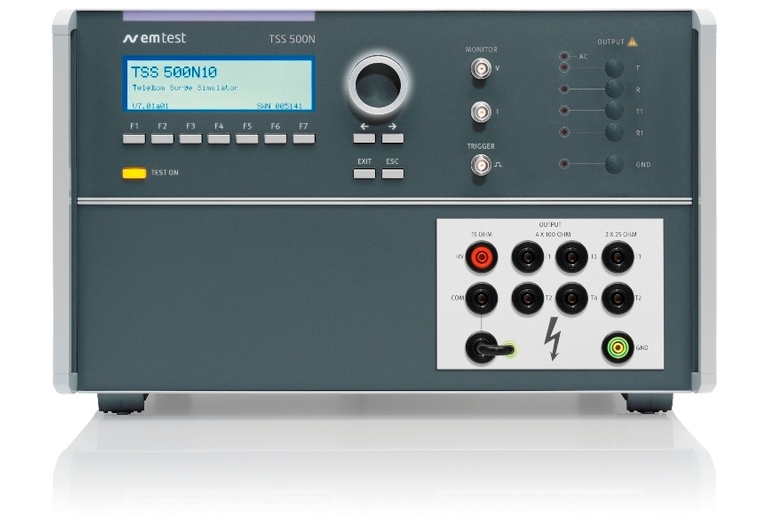

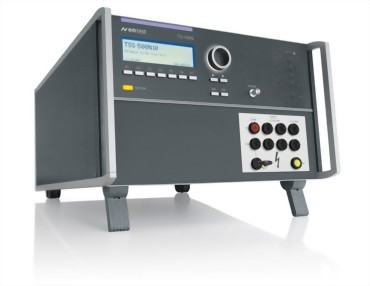

The TSS 500N10 is a compact tester to generate the Telecom Surge pulses 10/700 us and 9/720 us as well as the 1.2/50us Voltage Surge pulse.
The TSS 500N10 is not just the pulse generator but it comes with the built-in coupling networks for 2-wire and 4-wire test applications. The outputs can directly be connected to the Telecom ports of the DUT. For testing Telecom lines EM TEST offers the appropriate coupling networks for 4-wire or 8-wire lines.
Pre-programmed Standard Test routines allow best user convenience. Still the TSS 500N10 offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.

Operation

Easy to operate

Front panel menu and function keys enable the user to program his test routines quickly and accurately. The cursor allows fast control of all test parameters of the programmed routine, thus test procedures are simplified and confidence is generated that every step is carried out correctly.

Software

iec.control Software for Control and Documentation

Other Models

Telecom worldwide with EM TEST

The TSS 500M/N series covers the wide range of Telecom Surge requirements as per Bellcore GR-1089-Core, FCC 97-270 (part 68) and the various ITU-T recommendations as well as the requirements of many EN/IEC standards and some national Telecom Standards. For the complete overview please select "More Info".

Auxiliary Devices

CNV 504T5/508T5 - Coupling networks for Surge Tests on Telecom Lines

The coupling networks CNV 504T5 and CNV 508T5 are designed as per EN/IEC 61000-4-5 for Surge tests on Telecom lines. Two different models are available for 4-wire and 8-wire applications. The decoupling network consists of pairwise current-compensated inductors. The coupling of the Surge pulses is achieved via gas arrestors as recommended by EN/IEC 61000-4-5.
