Benefits
All in one - All what you need for your tests

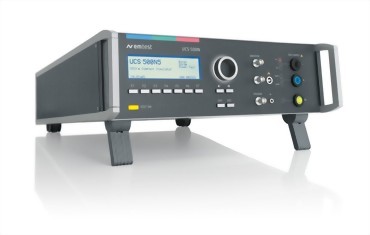

The UCS 500N5 includes everything necessary to conduct fully compliant tests. The power mains supply for the controls and for the DUT is separate to render it more flexible to use with different DUT supply voltages.
The UCS 500N5 can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow to control an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.
Pre-programmed Standard Test routines allow highest user convenience. Still the UCS 500N5 offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.

Operation
Easy to operate

Front panel menu and function keys enable the user to program his test routines quickly and accurately. The cursor allows fast control of all test parameters of the programmed routine, thus test procedures are simplified and confidence is generated that every step is carried out correctly.

Software
iec.control Software for control and documentation

Software UCS 500N5
Outstanding user convenience, clearly structured windows and operation features and the EM TEST standards library along with the flexibility to generate user specific test sequences very easily are the main features of iec.control software. The software is automatically configured according to the connected EM TEST generators. Extensive reporting capabilities help the user to create test reports that meet international requirements.
iec.control is supported by Windows XP, Windows Vista, Windows 7 and Windows 8. Remote control is achieved either via USB or GPIB. iec.control supports a wide range of GPIB cards of National Instruments.

Other Models
UCS 500N Series - Compact Testers up to 7kV

The UCS 500N ultra-compact testers for EFT/burst, Surge and Power Fail are available in different models; with voltage capability up to 5.5kV or up to 7kV.

Auxiliary Devices
CNI 503 - 3phase coupling/decoupling networks for burst and surge

EM TEST offers a range of fully automatic 3-phase coupling/decoupling networks for burst and surge to extend the test capability for three-phase DUTs. The networks have a rated current of up to 200 A.

MV 2616 - Motorised variac for voltage variation

A motorised variac is offered as an alternative to the tapped autotransformers for voltage dips/interruptions and voltage variation tests as per IEC/EN 61000-4-11. The motorised variac can also be used for automated magnetic field tests.

V 4780 - tapped voltage transformer for voltage dips

The V 4780 tapped autotransformer is designed to supply the required voltages as per IEC/EN 61000-4-11 Ed.2:2004 to perform voltage dips.

V 4780S2 - tapped voltage transformer for voltage dips

The V 4780S2 tapped autotransformer is designed to supply the required voltages as per IEC/EN 61000-4-11 Ed.2:2004 to perform voltage dips and interruptions. Compared to the manually operated V 4780 the V 4780S2 model offers automatic change of taps according to the selected voltage level.

CNV 504/508 N- and T Serie - Surge coupling/decoupling networks for signal/data lines

CNV 504/508 N- and T-series coupling/decoupling networks are available to perform surge tests on I/O lines, signal/data lines and telecom lines as per IEC/EN 61000-4-5 Ed 3.0

Accessories
MS 100N - magnetic field coil for power-frequency and pulsed magnetic fields
The MS 100N is a 1sqm magnetic field coil as specified in IEC/EN 61000-4-8 and IEC/EN 61000-4-9. Its design allows easy moving of the coil. The field coil is adjustable in height and allows for 360degr rotation.
To generate power-frequency magnetic fields in the lower range the current transformer MC 2630 is used while high-field strength above 100A/m requires the MC 26100 current transformer.
HFK - Capacitive coupling clamp
Capacitive coupling clamp as per specification IEC/EN 61000-4-4.
ITP - Immunity Test Probes
ITP is a tool being used for development test. It consists of a variety of electrical field probes. The probes allow to locate weak points within a system or on a PCB. The burst pulse is used to generate the disturbance signal.
CA EFT kit - Verification kit for EFT/burst pulses
As per IEC/EN 61000-4-4 Ed.2 the characteristic of the burst generator needs to be verified with two different loads, 50ohm and 1,000ohm. EM TEST offers a calibration kit consisting of the two loads and an adapter to verify the pulses at the DUT output.
CA HFK kit - Verification kit for capacitive coupling clamp
The IEC/EN 61000-4-4 Ed 3.0 published 2012 recomends the calibration of the capacitive coupling clamp into a 50ohm coaxial load.
The capacitive coupling clamp (HFK) is connected to the 50 ohm output of the EFT generator. A flexible insulated plate inside the HFK is connected to a coaxial 50 ohm load resistor for verificate the EFT / Burst wave of the capacitive coupling clamp.
